TLP558(F) - Toshiba

Description: Toshiba TLP558(F) DC Input Logic Gate Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP558(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

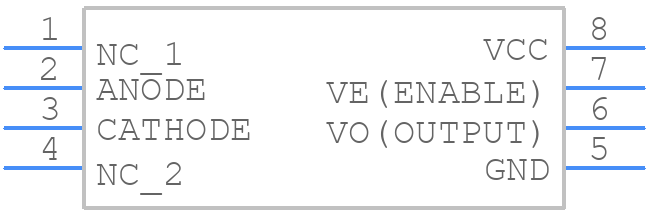

TLP558(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP558(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S_2022
click to zoom
3D Models
TLP558(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S_2022
click to zoom

TLP558(F) Details

  • Manufacturer Part Number:

    TLP558(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    4e-7 s

  • Response Time-Nom:

    2.5e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    NO

TLP558(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP558(F) is 4.5V to 5.5V.
  • To ensure reliable communication with the TLP558(F) in a noisy environment, use a common-mode choke coil or a ferrite bead on the transmission line, and consider using a shielded cable or a twisted pair cable.
  • The maximum cable length supported by the TLP558(F) depends on the transmission speed and the type of cable used. As a general guideline, the maximum cable length is approximately 10 meters at 1 Mbps and 1 meter at 10 Mbps.
  • During power-up and power-down sequences, ensure that the VCC pin is powered up and down slowly (within 10 ms) to prevent damage to the device. Also, ensure that the input signals are stable before applying power to the VCC pin.
  • The thermal resistance of the TLP558(F) is typically 125°C/W (junction-to-ambient) and 45°C/W (junction-to-case).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP558(F) Overview

Use the download button to access the TLP558(F) schematic symbol, PCB footprint, and 3D model.
