TLP559(F) - Toshiba

Description: Toshiba TLP559(F) DC Input Phototransistor Output Optocoupler, Through Hole, 8-Pin PDIP, with Shield

Download TLP559(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

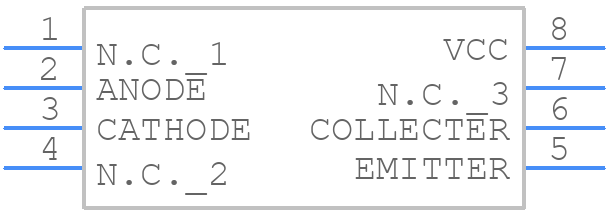

TLP559(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP559(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP559(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP559(F) Details

  • Manufacturer Part Number:

    TLP559(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED; TTL COMPATIBLE

  • Configuration:

    COMPLEX

  • Current Transfer Ratio-Min:

    20%

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.85 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3e-7 ns

  • Surface Mount:

    NO

TLP559(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP559(F) is 4.5V to 30V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
  • The maximum current rating for the TLP559(F) is 1.5A. Exceeding this rating may cause damage to the device.
  • Use a voltage regulator to regulate the input voltage, and consider adding a TVS (Transient Voltage Suppressor) diode to protect against overvoltage and ESD events.
  • The typical rise and fall time for the TLP559(F) is 10ns and 15ns, respectively.
