TLP621-4X - Isocom

Description: OPTOISO 5.3KV 4CH TRANS 16DIP

Download TLP621-4X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

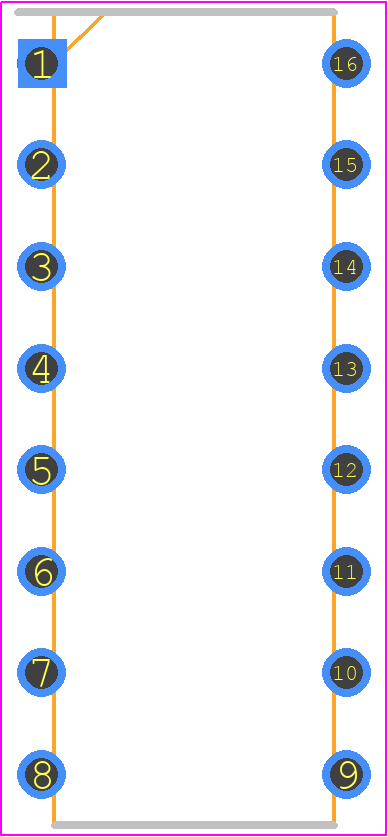

TLP621-4X - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP621-4X
click to zoom
3D Models
TLP621-4X - Isocom  - 3D model - Dual-In-Line Packages - TLP621-4X
click to zoom

TLP621-4X Details

  • Manufacturer Part Number:

    TLP621-4X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    2016-12-15

  • Manufacturer:

    Isocom Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

TLP621-4X Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP621-4X is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP621-4X is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical propagation delay time for the TLP621-4X is around 2-3 μs, but this can vary depending on the specific application and operating conditions.
