TLP627-2 - Toshiba

Description: ISOLATOR DUAL HS DARL OUT 8-DIP

Download TLP627-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

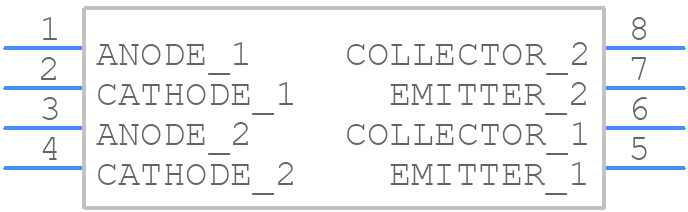

Symbol
TLP627-2 - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP627-2 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP627-2 - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP627-2 Details

  • Manufacturer Part Number:

    TLP627-2

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    1991-04-23

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    300 V

  • Configuration:

    SEPARATE, 2 CHANNELS WITH BUILT-IN DIODE AND RESISTOR

  • Current Transfer Ratio-Min:

    1000%

  • Current Transfer Ratio-Nom:

    4000%

  • Dark Current-Max:

    200 nA

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.00004 s

  • Surface Mount:

    NO

TLP627-2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP627-2 is 3.3V to 5V, although it can operate from 2.7V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signal is within the recommended voltage range.
  • The maximum current rating for the TLP627-2 output is 50mA. Exceeding this may cause damage to the device.
  • The TLP627-2 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
  • The TLP627-2 is rated for operation up to 85°C, but it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP627-2 Overview

Use the download button to access the TLP627-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
