TLP631(F) - Toshiba

Description: DC Input Phototransistor Output Optocoupler, Through Hole, 6-Pin PDIP

Download TLP631(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

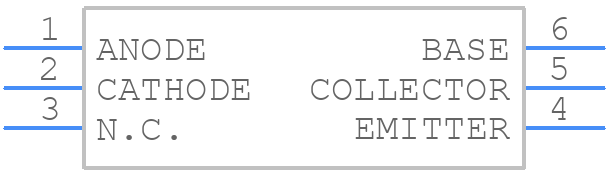

TLP631(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP631(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11−7A8
click to zoom
3D Models
TLP631(F) - Toshiba - 3D model - Dual-In-Line Packages - 11−7A8
click to zoom

TLP631(F) Details

  • Manufacturer Part Number:

    TLP631(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO
