Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, place the TLV0832CDR close to the analog signal sources, and use a ground plane to reduce noise and electromagnetic interference (EMI).
The TLV0832CDR has a bipolar output, so when using it with a single-ended ADC, you'll need to add a voltage offset to the output signal to ensure it falls within the ADC's input range. You can do this using an op-amp or a dedicated voltage offset circuit.
The TLV0832CDR can operate up to 1.5 MHz, but the maximum clock frequency depends on the specific application and the desired signal-to-noise ratio (SNR). Higher clock frequencies can improve SNR, but may also increase power consumption and noise sensitivity.
Use a low-noise, low-dropout regulator (LDO) to power the TLV0832CDR, and decouple the power pins with a 10 μF ceramic capacitor and a 100 nF bypass capacitor. Additionally, use a separate analog power supply and ground plane to isolate the TLV0832CDR from digital noise.
The TLV0832CDR can handle input signals up to ±10 V, but the recommended range is ±5 V for optimal performance. The input impedance is typically 10 kΩ, but can be affected by the input signal frequency and amplitude. Ensure the input signal is properly terminated and matched to the TLV0832CDR's input impedance to minimize signal reflections and distortion.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV0832CDR Overview

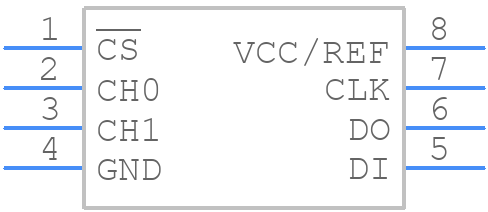

Use the download button to access the TLV0832CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV08,
or try a keyword search, such as Analog to Digital Converters
