TLV0838CDW - Texas Instruments

Description: 8-Bit 37.9 kSPS ADC Serial Out, Ratiometric Op or Vcc Ref, TTL/MOS Input & Output Compatible, 8 Ch.

Download TLV0838CDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

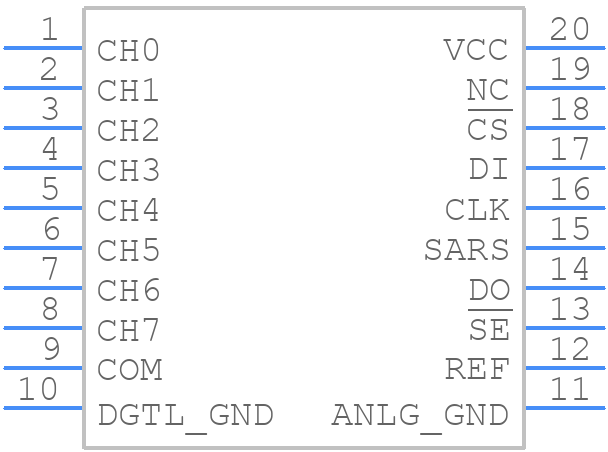

TLV0838CDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV0838CDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
TLV0838CDW - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

TLV0838CDW Details

  • Manufacturer Part Number:

    TLV0838CDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.031 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV0838CDW Frequently Asked Questions (FAQs)

  • The TLV0838CDW is a sensitive analog device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the analog signal sources, using a star-ground configuration, and keeping the analog and digital grounds separate. Additionally, it's essential to minimize the distance between the device and the decoupling capacitors.
  • The TLV0838CDW has a built-in POR and BOR circuitry. To handle these features, ensure that the power supply ramps up slowly (typically 10 ms to 100 ms) to allow the internal voltage regulator to stabilize. Also, consider adding external circuitry to filter out noise and ensure a clean power-on reset.
  • The TLV0838CDW can operate with a clock frequency up to 4 MHz. However, TI recommends using a clock frequency between 1 MHz to 2 MHz for optimal performance and to minimize power consumption.
  • To optimize ADC performance, ensure that the input signal is properly filtered and buffered, and that the reference voltage is stable and noise-free. Also, consider using the internal sample-and-hold capacitor and adjusting the conversion rate to minimize noise and improve accuracy.
  • The maximum allowed input voltage for the TLV0838CDW is 5.5 V. Exceeding this voltage can damage the device. Ensure that the input voltage is within the recommended range to ensure reliable operation.
