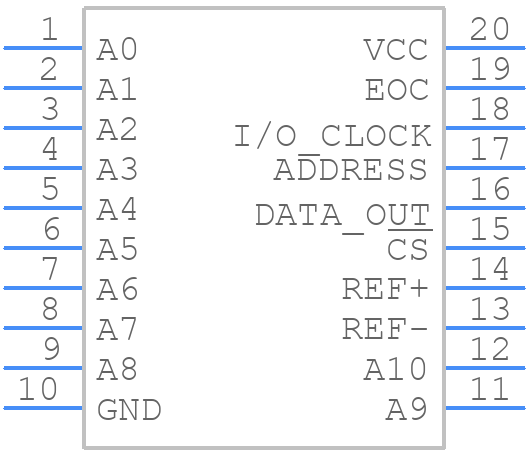

TLV1543CN - Texas Instruments

TLV1543CN Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the TLV1543CN to minimize noise and ensure accurate conversions?
  Texas Instruments recommends a star-ground connection for the analog and digital grounds, keeping the analog signal traces away from the digital signal traces, and using a ground plane to reduce noise. Additionally, the layout should be symmetrical to minimize thermal gradients.
• How do I handle the power-on reset (POR) and brown-out reset (BOR) in my design?
  The TLV1543CN has a built-in POR and BOR circuitry. To handle these, ensure that the power supply ramps up slowly (typically 10ms to 100ms) and that the voltage reaches the minimum operating voltage (VDD) before the device starts operating. Also, consider adding external circuitry to detect and respond to brown-out conditions.
• What is the recommended clock frequency and clock source for the TLV1543CN?
  The TLV1543CN can operate with a clock frequency up to 3.6MHz. A crystal oscillator or a high-quality clock source is recommended to ensure accurate conversions. The clock frequency should be chosen based on the desired conversion rate and the system's noise tolerance.
• How do I calibrate the TLV1543CN to achieve the best possible accuracy?
  The TLV1543CN has a built-in calibration circuitry. To calibrate the device, apply a known input voltage and measure the output code. Then, adjust the internal calibration registers to achieve the desired accuracy. Refer to the datasheet for the calibration procedure and register settings.
• What is the maximum input voltage range for the TLV1543CN, and how do I handle overvoltage protection?
  The TLV1543CN has an input voltage range of 0V to VDD. To handle overvoltage protection, consider adding external circuitry such as voltage-limiting resistors, zener diodes, or overvoltage protection ICs to prevent damage to the device.
