Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short traces and avoid crossing digital and analog signals. Refer to the TI application note 'AN-1187 Four-Layer PCB Layout and Routing for the TLV1544' for more details.
Use a low-impedance source, such as a buffer amplifier, to drive the input pins. Additionally, use a guard ring around the input pins to shield them from noise. TI also recommends using a capacitor (e.g., 10nF) between the input pin and ground to filter out high-frequency noise.
The TLV1544IDR has a maximum sampling rate of 200ksps (kilosamples per second) for 12-bit mode and 100ksps for 14-bit mode. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital output data rate.
The TLV1544IDR has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. TI recommends performing a self-calibration procedure at power-up and after any changes to the analog input range or reference voltage. Refer to the datasheet for the calibration procedure.
The TLV1544IDR has a typical power consumption of 15mW at 3V and 100ksps. To reduce power consumption, use the power-down mode (PD pin) when not converting, reduce the clock frequency, and use a lower supply voltage (e.g., 2.7V). Additionally, consider using the TLV1544IDR's low-power mode (LP bit) which reduces power consumption by approximately 50%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1544IDR Overview

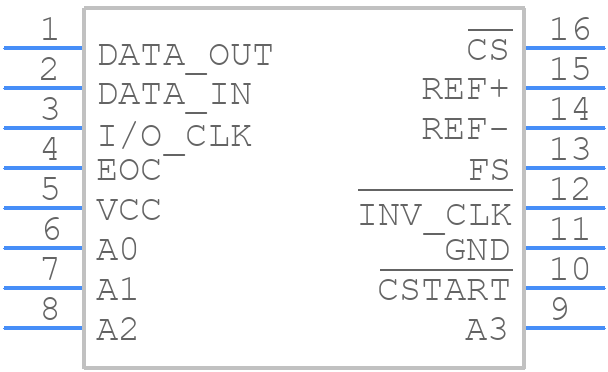

Use the download button to access the TLV1544IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
