Texas Instruments provides a layout and routing guide in the TLV1548IDB datasheet, which recommends keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing trace lengths and loops. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to route the analog signals away from the digital signals.
The TLV1548IDB requires a clock signal with a frequency range of 1.5 MHz to 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a dedicated clock source, such as a crystal oscillator or a clock generator, and to buffer the clock signal with a suitable buffer, such as the THS3201 or the LMK61.
The recommended power-up sequence for the TLV1548IDB is to apply the analog power supply (VCCA) first, followed by the digital power supply (VCCD), and then the clock signal. For power-down, it's recommended to remove the clock signal first, followed by the digital power supply, and then the analog power supply. The TLV1548IDB has a reset pin (RESET) that can be used to reset the device to its default state.
The TLV1548IDB does not require calibration, as it is a self-calibrating ADC. However, it's recommended to perform a system-level calibration to ensure accurate conversions. This can be done by applying a known input voltage and measuring the output code, and then adjusting the system gain and offset as needed.
The recommended input signal range for the TLV1548IDB is 0 V to VREF (typically 2.5 V or 5 V), and the input impedance is typically 10 kΩ. It's recommended to use a suitable input signal conditioning circuit, such as a voltage divider or an op-amp buffer, to ensure that the input signal is within the recommended range and impedance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1548IDB Overview

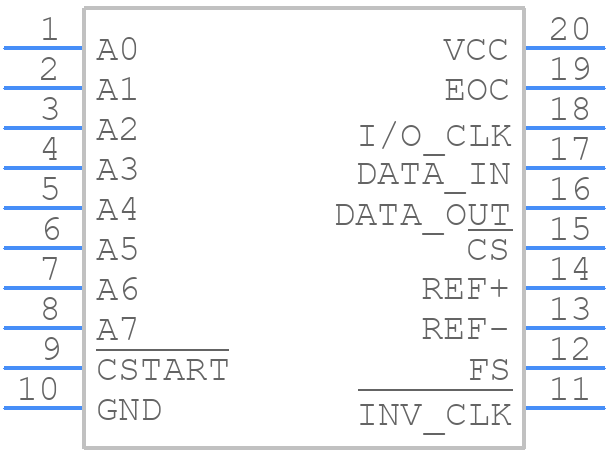

Use the download button to access the TLV1548IDB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
