Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the analog and digital signal traces separate and avoid running them parallel to each other. Use a solid ground plane and decouple the power supply pins with capacitors.
The choice of external components depends on the specific application and operating conditions. For capacitors, choose low-ESR capacitors with a value of 1-10uF for decoupling and 0.1-1uF for filtering. For resistors, choose 1% or 0.1% tolerance resistors with a power rating suitable for the application. Consult the datasheet and application notes for specific recommendations.
The TLV1562CPW is rated for operation from -40°C to 125°C. As the temperature increases, the device's performance may degrade, with increased noise, offset voltage, and power consumption. Ensure proper thermal management and heat sinking to maintain optimal performance.
The TLV1562CPW is programmed through a serial interface (SPI or I2C). Use the Texas Instruments-provided software tools, such as the TLV1562CPW Evaluation Module software, to configure the device's internal registers and settings. Consult the datasheet and user guides for specific programming instructions.
Common pitfalls include inadequate power supply decoupling, poor layout and routing, and incorrect programming of internal registers. To troubleshoot issues, use oscilloscopes and logic analyzers to debug the device's operation, and consult the datasheet, application notes, and Texas Instruments' support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1562CPW Overview

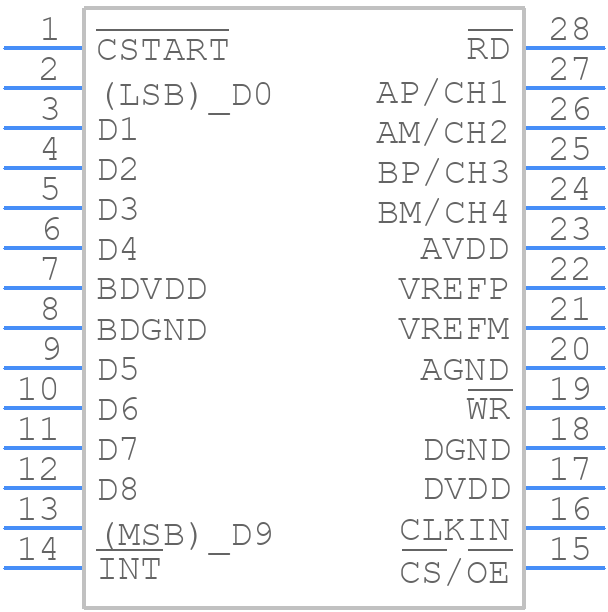

Use the download button to access the TLV1562CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
