Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and impedance matching requirements.
The maximum power dissipation of the TLV1570CPWG4 is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the ambient temperature within the recommended operating range.
Yes, the TLV1570CPWG4 can be used in switching regulator applications, but it's essential to ensure that the input voltage and current are within the recommended operating range, and that the output is properly filtered to prevent high-frequency noise from affecting the regulator's performance.
To troubleshoot common issues with the TLV1570CPWG4, start by checking the PCB layout and component values to ensure they match the recommended design. Then, use a scope or spectrum analyzer to measure the input and output waveforms, and check for signs of oscillation or instability. Finally, consult the datasheet and application notes for troubleshooting guidelines and potential solutions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1570CPWG4 Overview

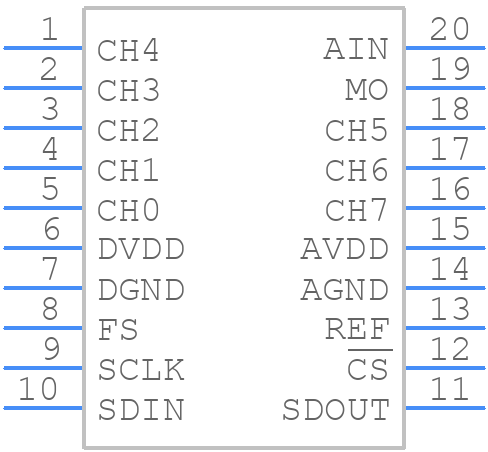

Use the download button to access the TLV1570CPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
