TLV1570IDW - Texas Instruments

Description: 10-Bit, 1.25 MSPS ADC 8-Ch., DSP/(Q)SPI IF, Pgmable Int. Ref., Auto or S/W PowerDown, Very Low Power

Download TLV1570IDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

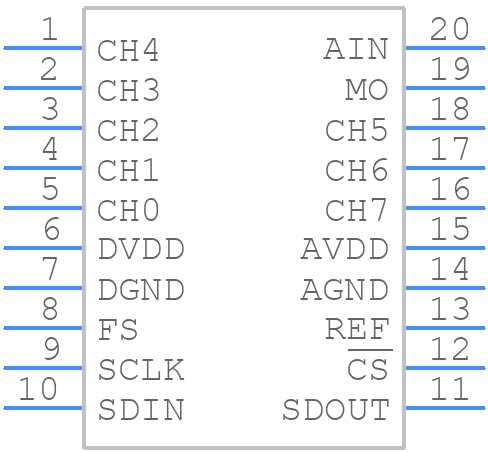

TLV1570IDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV1570IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW
click to zoom
3D Models
TLV1570IDW - Texas Instruments - 3D model - Small Outline Packages - DW
click to zoom

TLV1570IDW Details

  • Manufacturer Part Number:

    TLV1570IDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    1 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    8.5 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV1570IDW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's recommended to use a solid ground plane and to avoid routing digital signals under the device.
  • The TLV1570IDW has a built-in POR and BOR circuitry that resets the device during power-up and brown-out conditions. To handle this, ensure that your design can tolerate the reset signal and that your system is designed to recover from a reset event. You may also need to add external circuitry to debounce the reset signal if necessary.
  • The recommended operating temperature range for the TLV1570IDW is -40°C to 125°C. The device's performance may degrade at extreme temperatures, with increased offset voltage and decreased accuracy. Ensure that your design takes into account the temperature range and its effects on the device's performance.
  • The TLV1570IDW does not require calibration, as it is a factory-calibrated device. However, you may need to perform system-level calibration to account for external factors such as sensor accuracy and signal conditioning. Follow the application notes and datasheet recommendations for system-level calibration.
  • The recommended input impedance for the TLV1570IDW is 1 kΩ or higher. A lower input impedance can affect the device's accuracy and increase the noise sensitivity. Ensure that your input signal has a sufficient impedance to maintain the device's performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV1570IDW Overview

Use the download button to access the TLV1570IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
