Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's recommended to use a solid ground plane and to avoid routing digital signals under the device.
The TLV1571CDW has a built-in POR and BOR circuitry, but it's recommended to add an external capacitor to the VCC pin to ensure a clean power-up sequence. Additionally, the device has a reset output pin that can be used to reset external circuitry during power-on or brown-out conditions.
The TLV1571CDW can operate up to 3.6 MHz, but the maximum clock frequency depends on the specific application and the noise margin required. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
To ensure accurate ADC conversions, it's recommended to use a low-noise, low-impedance analog input source, and to keep the analog input signals away from digital signals. Additionally, the device has a built-in sample-and-hold circuit, but it's recommended to add an external sample-and-hold capacitor to improve conversion accuracy.
The TLV1571CDW is specified to operate from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific guidance on operating temperature range and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1571CDW Overview

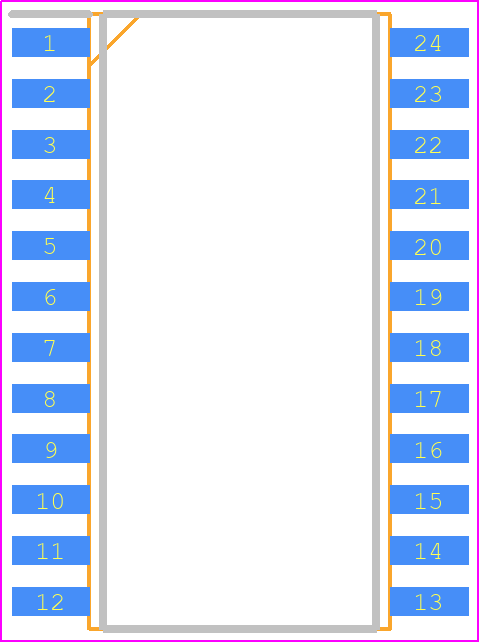

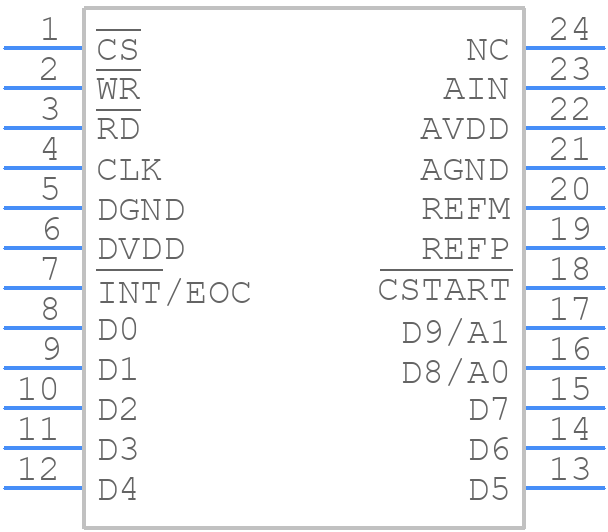

Use the download button to access the TLV1571CDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
