- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TLV1572CDR
- Part Number TLV1572CDR
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D0008A
- Released Date Sep 13, 2021
- Last Modified Date Nov 30, 2023 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
TLV1572CDR Details
-
Manufacturer Part Number:
TLV1572CDR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOP-8
-
Pin Count:
8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
TLV1572CDR Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
-
The TLV1572CDR has a built-in POR and BOR circuitry. To handle these reset events, ensure that your system design can properly respond to the reset signal, which is active-low. You may need to add external circuitry, such as a reset supervisor or a capacitor, to debounce the reset signal and ensure a clean startup.
-
Although the datasheet specifies the maximum input voltage range as VCC + 0.3V, it's recommended to limit the input voltage to VCC or less to ensure accurate ADC conversions and prevent damage to the device.
-
To optimize ADC conversion speed and accuracy, ensure that the input signals are properly filtered and buffered, and that the ADC clock frequency is set appropriately. Additionally, consider using the internal reference voltage, and calibrate the ADC using the built-in calibration feature.
-
The TLV1572CDR is specified to operate up to 125°C. However, it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, when designing for high-temperature applications. Ensure that your system design provides adequate heat dissipation and thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
TLV1572CDR Overview

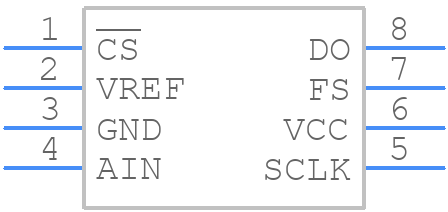

Use the download button to access the TLV1572CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
