TLV1578IDA - Texas Instruments

Description: 8-Ch. 10-Bit 1.25 MSPS ADC 8-Ch., DSP/SPI, Hardware Configurable, Low Power

Download TLV1578IDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

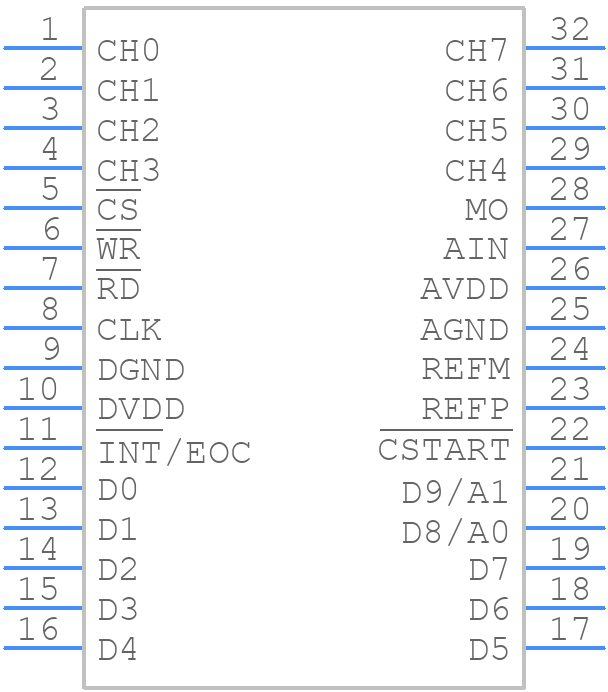

TLV1578IDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV1578IDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DA (R-PDSO-G32)
click to zoom
3D Models
TLV1578IDA - Texas Instruments - 3D model - Small Outline Packages - DA (R-PDSO-G32)
click to zoom

TLV1578IDA Details

  • Manufacturer Part Number:

    TLV1578IDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-32

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    2.7 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    8.5 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.2 mm

TLV1578IDA Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground topology and a symmetrical layout to minimize noise. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and avoid routing digital signals near the analog inputs. Additionally, use a 0.1uF decoupling capacitor between the VCC and GND pins, and a 10uF capacitor between the VCC and AVCC pins.
  • The TLV1578IDA is specified to operate from -40°C to 125°C. Ensure that the device is properly heatsinked and that the ambient temperature is within the specified range. You can also use thermal simulation tools to estimate the junction temperature and ensure it is within the specified range.
  • Texas Instruments recommends powering up the VCC pin before the AVCC pin. The VCC pin should be powered up first, followed by the AVCC pin. This ensures that the internal voltage regulators are properly enabled and that the device operates correctly.
  • When the analog input pins are not in use, they should be connected to a fixed voltage, such as the analog ground or a voltage divider, to prevent noise and oscillations. Do not leave the input pins floating, as this can cause the device to malfunction.
  • The TLV1578IDA's analog output pins can drive a maximum capacitive load of 100pF. Exceeding this limit can cause the device to oscillate or malfunction. If a larger capacitive load is required, consider using an external buffer or amplifier.
