The maximum power dissipation of the TLV2370IP is dependent on the package type and ambient temperature. For the PDIP package, it is 640mW at 25°C, and for the SOIC package, it is 450mW at 25°C. Refer to the thermal characteristics table in the datasheet for more information.
To ensure stability in a unity-gain buffer configuration, make sure to use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10nF to 100nF between the output and the inverting input. This helps to compensate for the op-amp's internal capacitance and ensures stability.
To minimize noise and EMI, follow good PCB layout practices such as keeping the input and output traces short and separate, using a solid ground plane, and avoiding routing signals near the op-amp's inputs. Also, use a decoupling capacitor (e.g., 0.1uF) between the power supply pins and the ground plane, and place it as close to the op-amp as possible.
While the TLV2370IP can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/us) and limited output current (±20mA). Texas Instruments recommends using a dedicated comparator like the TLV7031 or TLV7041 for comparator applications.
The TLV2370IP has a relatively low input bias current (±10pA) which can be neglected in most applications. However, if you need to minimize input bias current effects, use a high-impedance input source, and consider using a bias current cancellation technique or an input bias current compensation circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2370IP Overview

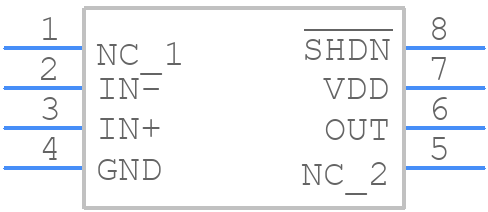

Use the download button to access the TLV2370IP schematic symbol, PCB footprint, and 3D model.
