Texas Instruments recommends a compact layout with the TLV2401ID placed close to the analog signal source, and the use of a ground plane to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and improve performance.
The TLV2401ID is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to consider the thermal design of the system, including heat sinking, air flow, and thermal interface materials. Additionally, the device should be operated within its specified power dissipation limits to prevent overheating.
Texas Instruments recommends a power-up sequence where the analog supply voltage (VCC) is applied before the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent unwanted digital noise from affecting the analog signals.
The TLV2401ID has a rail-to-rail output stage, which means the output voltage swing is limited by the supply voltage. To ensure the output signal is not clipped, the load impedance should be high enough to prevent the output current from exceeding the specified maximum current. Additionally, the output voltage should be buffered or amplified if it needs to drive a low-impedance load.
The recommended input impedance for the TLV2401ID is greater than 1 kΩ to ensure that the input signal is not attenuated. A higher input impedance also helps to reduce the input capacitance and improve the overall noise performance of the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2401ID Overview

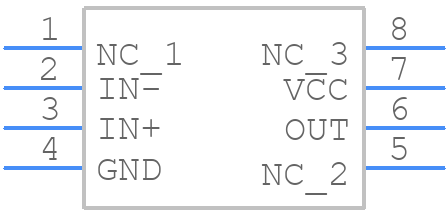

Use the download button to access the TLV2401ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
