The maximum power dissipation of the TLV2402CD is dependent on the ambient temperature and the package type. For the SOIC package, the maximum power dissipation is 670mW at 25°C. However, it's recommended to derate the power dissipation by 6.7mW/°C above 25°C.
To minimize noise and ensure stability, it's recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, ensure that the input and output traces are short and direct, and avoid running them near noise sources or high-current paths.
The recommended capacitor value for decoupling the power pins of the TLV2402CD is 0.1uF to 1uF, with a voltage rating that matches or exceeds the supply voltage. A ceramic capacitor with a low ESR (Equivalent Series Resistance) is recommended.
While the TLV2402CD can be used as a comparator, it's not recommended due to its limited output current and voltage swing. The TLV2402CD is designed as a general-purpose operational amplifier, and its output stage is not optimized for comparator applications. If you need a comparator, it's recommended to use a dedicated comparator IC such as the TLV7031.
The TLV2402CD has built-in ESD protection, but it's still recommended to follow good ESD handling practices during manufacturing and assembly. This includes using ESD-safe materials, grounding personnel and equipment, and using ESD-protective packaging. Additionally, consider adding external ESD protection devices such as TVS diodes or ESD arrays to the PCB design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2402CD Overview

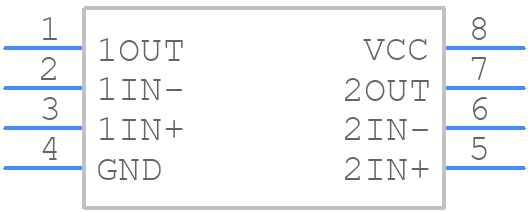

Use the download button to access the TLV2402CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
