Texas Instruments recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
The POR and BOR features are enabled by default. To handle them, ensure that the power supply ramps up slowly (typically 1-10 ms) to allow the internal voltage regulator to stabilize. Also, add a capacitor (typically 1-10 μF) between the VCC pin and ground to filter out noise and ensure a clean power-on reset.
The TLV2442AIPW can drive capacitive loads up to 1 nF. However, it's recommended to limit the capacitive load to 100 pF or less to ensure stability and optimal performance.
To optimize the TLV2442AIPW for low-power operation, use a low-power mode (e.g., shutdown or low-power shutdown) when the device is not in use. Additionally, reduce the clock frequency, use a low-power oscillator, and minimize the number of active circuits.
The TLV2442AIPW has a maximum junction temperature (TJ) of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Also, follow the recommended operating conditions and derate the device's performance at high temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2442AIPW Overview

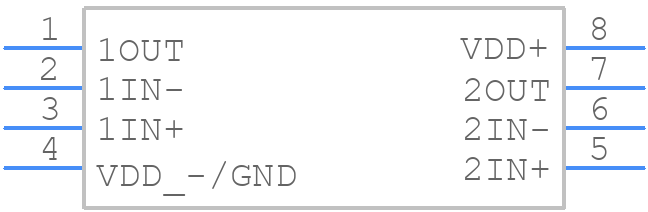

Use the download button to access the TLV2442AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
