The maximum power dissipation of the TLV2460CDR is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the MSOP package, it is 440mW at 25°C. Refer to the thermal characteristics table in the datasheet for more information.
To ensure stability in a unity-gain buffer configuration, make sure to use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10nF to 100nF between the output and the inverting input. This capacitor helps to compensate for the op-amp's internal capacitance and ensures stability.
To minimize noise and EMI, follow these layout and routing guidelines: keep the input and output traces short and away from each other, use a solid ground plane, and place decoupling capacitors close to the op-amp's power pins. Additionally, avoid running high-frequency signals near the op-amp's inputs and outputs.
The TLV2460CDR is specified to operate from -40°C to 125°C. However, the device's performance may degrade at higher temperatures. If you need to operate the device at high temperatures, ensure that you follow proper thermal management techniques, such as using a heat sink or reducing the power dissipation.
When choosing resistors for the feedback network, ensure that they are of high precision (e.g., 1% or better) and have a low temperature coefficient. The resistor values should be chosen to achieve the desired gain and bandwidth. Additionally, consider the op-amp's input bias current and input impedance when selecting the resistors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2460CDR Overview

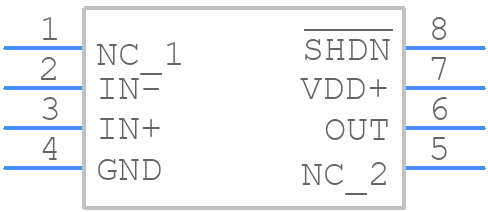

Use the download button to access the TLV2460CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
