The maximum power dissipation of the TLV2461ID is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins to compensate for the internal pole. Additionally, ensure that the layout is well-designed to minimize parasitic capacitance and inductance.
The recommended input common-mode voltage range for the TLV2461ID is between VCC- and VCC+, but not exceeding the supply voltage rails. Operating outside this range may result in reduced performance or oscillations.
While the TLV2461ID can be used as a comparator, it's not recommended due to its op-amp architecture. The TLV2461ID is designed for linear amplification, and its output stage is not optimized for high-speed switching. Texas Instruments offers dedicated comparator devices, such as the TLV703, which are better suited for comparator applications.
The TLV2461ID has internal ESD protection diodes, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the circuit if it's exposed to harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2461ID Overview

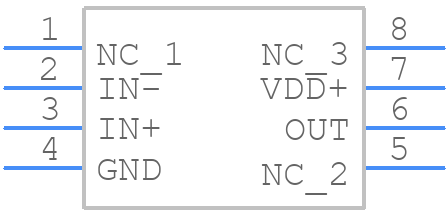

Use the download button to access the TLV2461ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
