The maximum power dissipation of the TLV2461IP is dependent on the package type and ambient temperature. For the PDIP package, the maximum power dissipation is 670mW at 25°C. For the SOIC package, it is 450mW at 25°C. Refer to the thermal characteristics table in the datasheet for more information.
To ensure stability in a unity-gain buffer configuration, make sure to use a bypass capacitor between the VCC pin and ground, and a decoupling capacitor between the VIN pin and ground. The recommended values are 0.1uF for the bypass capacitor and 0.01uF for the decoupling capacitor. Additionally, ensure that the layout is done to minimize parasitic inductance and capacitance.
The recommended input impedance for the TLV2461IP is greater than 1kΩ to ensure optimal performance. Lower input impedances can lead to reduced bandwidth and increased distortion.
While the TLV2461IP can be used as a comparator, it is not recommended due to its limited slew rate and bandwidth. The TLV2461IP is designed as a general-purpose op-amp, and its performance may not be suitable for high-speed comparator applications. Texas Instruments recommends using a dedicated comparator device, such as the TLV7031, for comparator applications.
The TLV2461IP has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Additionally, use ESD protection devices, such as TVS diodes, in the circuit design to protect against external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2461IP Overview

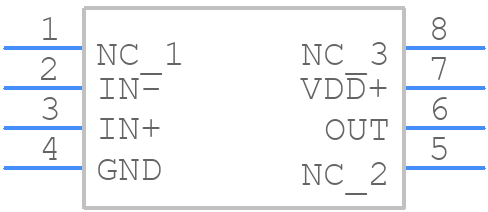

Use the download button to access the TLV2461IP schematic symbol, PCB footprint, and 3D model.
