Texas Instruments recommends a star-ground layout, with the TLV2462AIP placed close to the analog signal sources, and the analog and digital grounds separated to minimize noise coupling. Additionally, it's recommended to place a 0.1uF decoupling capacitor between the VCC and GND pins, and to use a low-ESR capacitor for the output filter.
To ensure stability, make sure to follow the recommended layout and placement, and use a compensation capacitor (Ccomp) between the COMP and VOUT pins. The value of Ccomp depends on the output voltage and load capacitance, but a typical value is around 10-22pF. Also, ensure that the output filter is properly designed and the output capacitor is of high quality.
The TLV2462AIP has an absolute maximum input voltage rating of 6V, but the recommended maximum input voltage is 5.5V to ensure reliable operation. Exceeding this voltage can cause damage to the device.
The TLV2462AIP is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures, and to ensure proper thermal management to prevent overheating.
The output voltage ripple of the TLV2462AIP can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. The recommended output capacitor value and type can help minimize the output voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2462AIP Overview

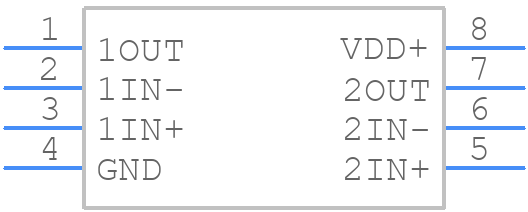

Use the download button to access the TLV2462AIP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
