The maximum power dissipation of the TLV2463CDGS is dependent on the ambient temperature and the package thermal resistance. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to use the power dissipation calculator provided by Texas Instruments to determine the maximum power dissipation for a specific application.
To ensure stability when using the TLV2463CDGS in a high-gain configuration, it's essential to follow proper layout and compensation techniques. This includes using a low-ESR capacitor for power supply decoupling, minimizing parasitic capacitance and inductance, and using a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, it's recommended to simulate the circuit using SPICE models to verify stability.
The recommended input impedance for the TLV2463CDGS is dependent on the specific application. However, as a general rule, it's recommended to keep the input impedance below 1 kΩ to ensure optimal performance and minimize noise pickup. The datasheet provides more information on input impedance and its effects on the op-amp's performance.
Yes, the TLV2463CDGS can be used in a single-supply configuration. However, it's essential to ensure that the input common-mode voltage range is within the specified limits (typically 0.5V to VCC - 1.5V). Additionally, the output voltage swing may be limited in single-supply configurations, so it's recommended to consult the datasheet for more information on single-supply operation.
The TLV2463CDGS has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, or other ESD protection devices to prevent damage to the device. Additionally, it's recommended to use ESD protection diodes or other protection circuits in the application circuit to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2463CDGS Overview

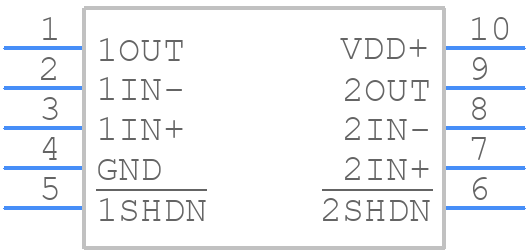

Use the download button to access the TLV2463CDGS schematic symbol, PCB footprint, and 3D model.
