Texas Instruments recommends a star-ground layout, with the op-amp inputs and outputs connected to the analog ground plane, and the power supply pins connected to the power plane. Additionally, it's recommended to place the op-amp close to the signal source and load, and to use short, direct traces to minimize noise and parasitic capacitance.
The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the maximum junction temperature (TJ), it will shut down. To handle this, ensure good thermal design practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation. If thermal shutdown occurs, the device will automatically recover when the temperature drops below the reset threshold.
Texas Instruments recommends using input capacitance values between 10pF to 100pF, and output capacitance values between 10pF to 100nF. However, the optimal capacitance values depend on the specific application and frequency range. It's recommended to experiment with different values to achieve the desired performance.
To minimize noise and oscillations, ensure a clean power supply, use a low-noise voltage regulator, and decouple the power supply pins with 10uF to 100uF capacitors. Additionally, use a low-pass filter or a ferrite bead to filter out high-frequency noise, and avoid using long, unshielded cables or traces that can pick up electromagnetic interference.
The maximum allowed input voltage swing for the TLV2464AIPW is from -0.5V to VCC + 0.5V. Exceeding this range can cause the op-amp to saturate or even damage the device. Ensure that the input signal is within the recommended range to maintain optimal performance and prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2464AIPW Overview

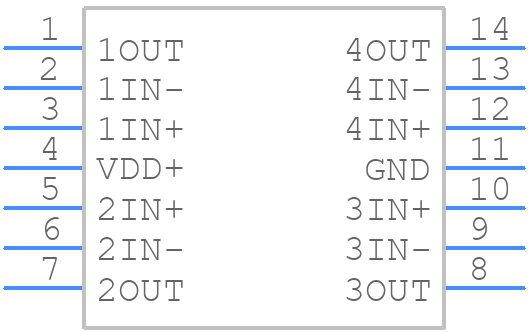

Use the download button to access the TLV2464AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
