The maximum power dissipation of the TLV2464ID is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the MSOP package, it is 440mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, it is essential to ensure that the layout is well-designed, with short leads and minimal parasitic capacitance.
The recommended input common-mode voltage range for the TLV2464ID is from VCC- to VCC+ - 1.5V. Operating the device outside of this range may result in reduced performance, increased distortion, or even oscillations. It is essential to ensure that the input common-mode voltage remains within this range to maintain optimal performance.
While the TLV2464ID can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/μs) and limited output current drive capability (±20mA). Texas Instruments offers dedicated comparator devices, such as the TLV703, which are specifically designed for comparator applications and offer faster response times and higher output current drive capabilities.
The TLV2464ID has built-in ESD protection, but it is still essential to follow proper handling and assembly procedures to prevent damage. It is recommended to use anti-static wrist straps, mats, and packaging materials when handling the device. Additionally, it is essential to ensure that the PCB layout and assembly process minimize the risk of ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2464ID Overview

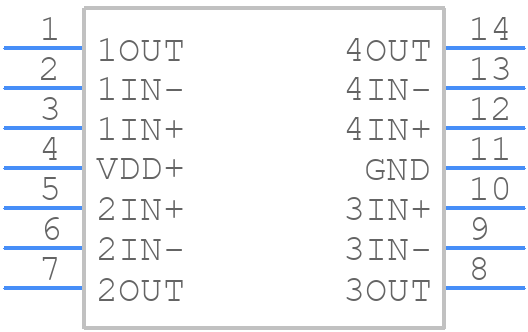

Use the download button to access the TLV2464ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
