The maximum power dissipation of the TLV2465IN is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the PDIP package, it is 450mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
To ensure stability when using the TLV2465IN in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
To minimize noise and EMI, it is recommended to follow good PCB layout and routing practices. Keep the input and output traces short and away from each other, use a solid ground plane, and avoid running sensitive signals near the op-amp's power pins. Additionally, decouple the power pins with capacitors (typically 10uF to 100uF) to reduce noise and ripple.
While the TLV2465IN can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/us) and limited output current drive capability. Texas Instruments offers dedicated comparator devices, such as the TLV7031, which are better suited for comparator applications.
The TLV2465IN has a relatively low input bias current (typically 1pA), but it can still affect the circuit's performance. To minimize the impact of input bias current, use high-impedance sources, and consider adding a voltage follower or a buffer stage to isolate the input signal from the op-amp's input pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2465IN Overview

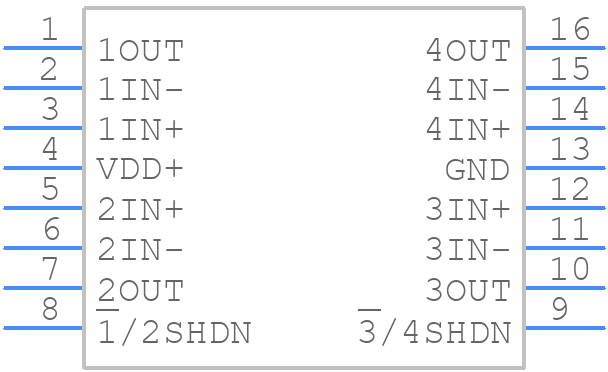

Use the download button to access the TLV2465IN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
