Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point. Additionally, it's essential to keep the input and output traces short and away from noise sources. A 4-layer PCB with a solid ground plane is also recommended.
To minimize EMI sensitivity, use a shielded enclosure, keep the op-amp away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure good PCB layout practices, such as keeping the input and output traces short and away from each other.
The TLV2471AIDR can drive up to 1nF of capacitive load. However, it's recommended to limit the capacitive load to 100pF or less to ensure stability and prevent oscillations.
Yes, the TLV2471AIDR can be used in a single-supply configuration. However, the input common-mode range is limited to VCC-1.5V to VCC+0.5V. Ensure that the input signal is within this range to maintain proper operation.
The noise floor of the TLV2471AIDR can be calculated using the equation: Noise Floor (nV/√Hz) = √(4kT × Rf × BW), where k is Boltzmann's constant, T is the temperature in Kelvin, Rf is the feedback resistance, and BW is the bandwidth. Consult the datasheet for more information on noise calculations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV2471AIDR Overview

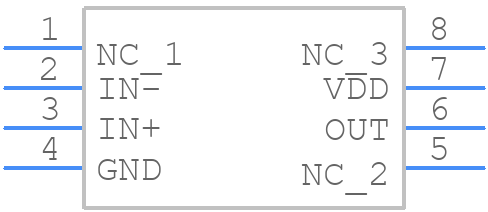

Use the download button to access the TLV2471AIDR schematic symbol, PCB footprint, and 3D model.
