The maximum power dissipation of the TLV2472CDGN is dependent on the ambient temperature and the package thermal resistance. According to the datasheet, the maximum power dissipation is 670mW at 25°C ambient temperature, but this can be derated to 500mW at 50°C and 330mW at 85°C.
To ensure stability in a unity-gain buffer configuration, it's essential to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the op-amp's internal capacitance and prevents oscillations.
To minimize noise and EMI, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the op-amp's power pins. Additionally, avoid routing high-frequency signals near the op-amp's inputs and outputs.
The TLV2472CDGN is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's essential to consider the op-amp's thermal characteristics and ensure that the device is properly heat-sinked and derated for high-temperature applications.
The choice of resistors and capacitors for the feedback network depends on the specific application and desired frequency response. As a general rule, use high-quality, low-tolerance resistors and capacitors, and ensure that the impedance of the feedback network is matched to the op-amp's input impedance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2472CDGN Overview

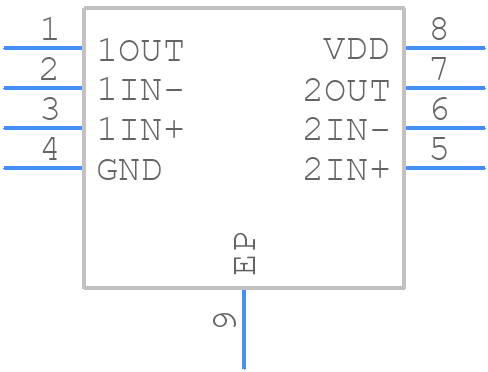

Use the download button to access the TLV2472CDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
