Texas Instruments recommends a layout with a star-ground configuration, where the analog and digital grounds are separated and connected at a single point. Additionally, it's recommended to place the TLV2473IDGQR close to the analog signal sources and away from digital signal lines to minimize noise coupling.
The POR and BOR features of the TLV2473IDGQR are designed to ensure that the device powers up in a known state. To handle these features, ensure that the power supply voltage rises monotonically and does not drop below the minimum operating voltage during power-up. Also, add a capacitor to the VCC pin to filter out noise and ensure a clean power-up sequence.
The TLV2473IDGQR can drive a maximum capacitive load of 150 pF. Exceeding this limit may cause instability or oscillations in the output signal. If a larger capacitive load is required, consider adding a buffer amplifier or reducing the capacitive load through impedance matching.
To ensure EMC with the TLV2473IDGQR, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel traces that can create antennas. Additionally, use shielding and filtering techniques to reduce electromagnetic radiation and susceptibility.
The thermal resistance of the TLV2473IDGQR package is typically around 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C. To ensure optimal performance, keep the device within its recommended operating temperature range and use thermal management techniques, such as heat sinks or thermal vias, to reduce the junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2473IDGQR Overview

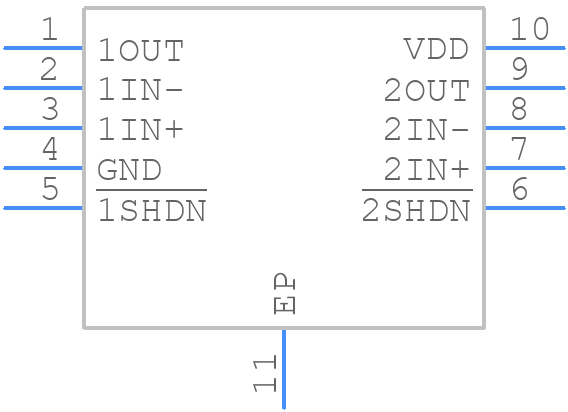

Use the download button to access the TLV2473IDGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
