Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, it's essential to keep the input and output traces short and away from noise sources, and to use a solid ground plane to reduce electromagnetic interference (EMI).
The POR and BOR features are enabled by default, but can be disabled by connecting the POR/BOR pin to VCC. When enabled, the device will reset when the supply voltage falls below the BOR threshold or during power-up. Ensure that your system design can handle the reset timing and voltage requirements.
The TLV2474CPWP can drive up to 1nF of capacitive load. Exceeding this limit may cause instability or oscillations. If you need to drive a larger capacitive load, consider adding a buffer or using a device with higher drive capability.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, keeping traces short, and using shielding or filtering components as needed. Additionally, consider using a device with built-in EMI filtering, such as the TLV2474CPWP, which has a built-in 2kΩ series resistor on the output.
The thermal resistance of the TLV2474CPWP package is typically around 60°C/W. This means that the device's junction temperature will rise by 60°C for every watt of power dissipated. Ensure that your system design provides adequate heat sinking and thermal management to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2474CPWP Overview

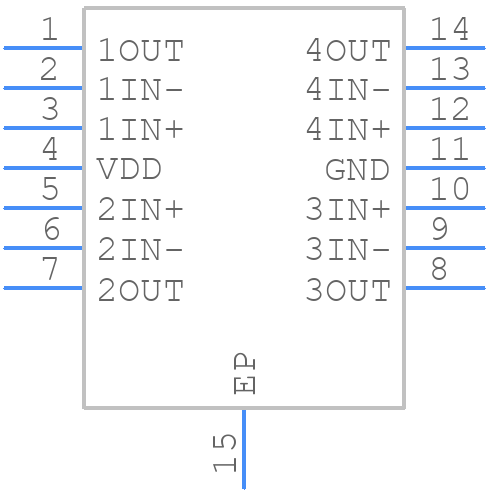

Use the download button to access the TLV2474CPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
