Texas Instruments provides a recommended layout and routing guide in the TLV2541CDGK datasheet, but it's also important to follow general PCB design best practices for analog circuits, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling.
The TLV2541CDGK has a built-in POR and BOR function, but it's essential to ensure that the power supply is stable and within the recommended operating range to avoid false resets. Additionally, consider adding external reset circuitry or a voltage supervisor to ensure a clean power-on sequence.
The TLV2541CDGK can drive capacitive loads up to 1000 pF, but it's recommended to limit the load capacitance to 100 pF or less to ensure stability and minimize ringing. Exceeding the recommended load capacitance may result in oscillations or reduced accuracy.
The TLV2541CDGK does not require calibration, as it is a factory-calibrated device. However, it's essential to follow the recommended operating conditions, such as temperature range and power supply voltage, to ensure optimal performance.
The thermal resistance of the QFN package (RθJA) is approximately 30°C/W, and the thermal resistance of the junction-to-case (RθJC) is around 10°C/W. It's essential to consider thermal management and heat dissipation in the system design to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2541CDGK Overview

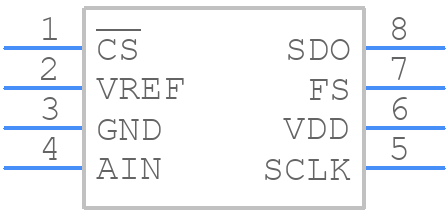

Use the download button to access the TLV2541CDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
