Texas Instruments provides a layout and routing guide in the application note SLAA701, which recommends keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing trace lengths and loops to reduce noise and electromagnetic interference (EMI).
The TLV2541IDGKG4 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves shorting the CAL pin to the VREF pin and then reading the output voltage. The output voltage can then be used to calculate the gain and offset errors, which can be compensated for in the application software.
The maximum sampling rate of the TLV2541IDGKG4 is dependent on the clock frequency and the conversion mode. In the fastest conversion mode, the TLV2541IDGKG4 can achieve a sampling rate of up to 400 kSPS with a clock frequency of 20 MHz.
In such cases, it is recommended to reset the TLV2541IDGKG4 by pulling the RESET pin low for at least 10 ns. This will reset the device and put it in a known state. If the problem persists, it may be necessary to check the power supply, clock, and input signals to ensure they are within the recommended specifications.
Yes, the TLV2541IDGKG4 can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between different input channels. In the latter case, the multiplexer should be connected to the analog input pins of the TLV2541IDGKG4, and the channel selection should be controlled by the digital output pins of the microcontroller.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2541IDGKG4 Overview

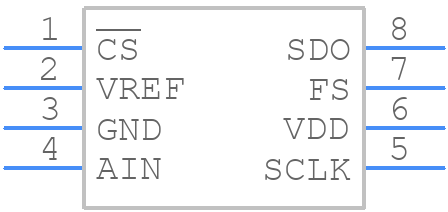

Use the download button to access the TLV2541IDGKG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
