Texas Instruments provides a recommended layout and routing guide in the TLV2542IDR datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns near the device.
The TLV2542IDR can deliver up to 10mA of output current per channel. To handle this high output current, it's recommended to use a low-ESR capacitor at the output, and to ensure that the PCB traces and connectors can handle the current. Additionally, consider using a buffer or amplifier if the output current needs to be further increased.
The TLV2542IDR's performance is affected by temperature, with parameters such as offset voltage, gain, and output voltage swing changing with temperature. The datasheet provides temperature-related specifications, but it's also important to consider the operating temperature range and potential thermal gradients in the system design.
To ensure EMC with the TLV2542IDR, follow general EMC design guidelines, such as using a shielded enclosure, minimizing loop areas, and using filtering and shielding on input and output lines. Additionally, consider using a common-mode choke or ferrite bead on the input lines to reduce electromagnetic interference (EMI).
The recommended power-up sequence for the TLV2542IDR is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the device is properly biased and configured before the input signals are applied.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2542IDR Overview

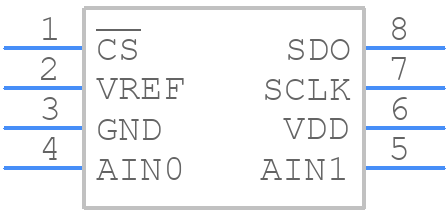

Use the download button to access the TLV2542IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
