Texas Instruments provides a recommended layout and routing guide in the TLV2553 datasheet, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The TLV2553IPWG4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour can be used to connect the thermal pad to the thermal plane. Additionally, the device's power consumption and ambient temperature should be considered to ensure the device operates within its recommended temperature range.
The recommended input capacitance is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
The TLV2553IPWG4 requires a single 2.7V to 5.5V power supply, and the device's input and output pins must be properly biased. The datasheet provides guidelines for power supply decoupling, input and output voltage ranges, and biasing requirements. Additionally, the device's power-on reset and enable pins should be properly configured to ensure correct operation.
The TLV2553IPWG4 is a 12-bit, 3.5 MSPS analog-to-digital converter, and its maximum operating frequency is 3.5 MSPS. However, the device's operating frequency can be adjusted using the clock input pin, and the device can operate at lower frequencies depending on the application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2553IPWG4 Overview

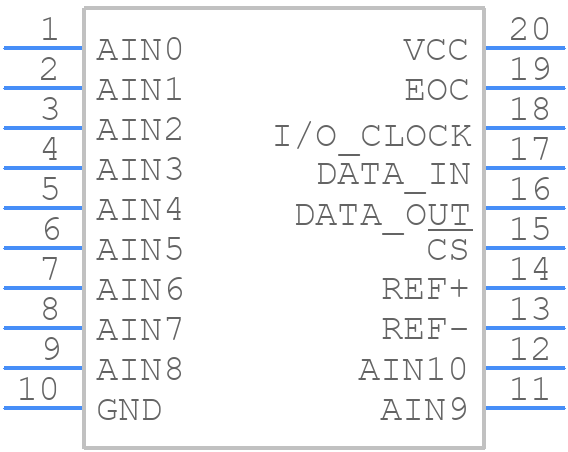

Use the download button to access the TLV2553IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
