TLV2620IDR - Texas Instruments

Description: 800 uA/ch, 11MHz, RRO, Low Voltage, Single Channel Op Amp with Shutdown

Download TLV2620IDR Model

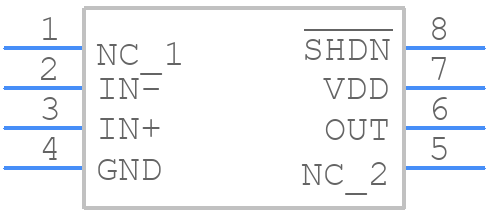

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2620IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A  SOIC
click to zoom
3D Models
TLV2620IDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A  SOIC
click to zoom

TLV2620IDR Details

  • Manufacturer Part Number:

    TLV2620IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    99 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00005 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2.3 V/us

  • Slew Rate-Nom:

    6 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    11000

  • Voltage Gain-Min:

    31622

  • Wideband:

    NO

  • Width:

    3.9 mm

TLV2620IDR Frequently Asked Questions (FAQs)

  • The TLV2620IDR is a high-frequency device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the power supply, using short traces, and avoiding vias and corners. A solid ground plane and decoupling capacitors are also essential. Refer to the TI application note 'PCB Layout Guidelines for Switching Regulators' for more information.
  • Choosing the right inductor for the TLV2620IDR involves considering factors such as inductance value, saturation current, and DC resistance. TI recommends using an inductor with a value between 1.5 μH and 3.3 μH, and a saturation current rating above the peak current of the converter. The DC resistance should be as low as possible to minimize losses. Refer to the TI application note 'Inductor Selection for Switching Regulators' for more information.
  • The TLV2620IDR has an absolute maximum input voltage rating of 18 V. However, the recommended maximum input voltage is 15 V to ensure reliable operation and minimize the risk of damage. Exceeding the recommended maximum input voltage may result in reduced performance, increased power dissipation, or even device failure.
  • The TLV2620IDR has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. TI recommends derating the output current and input voltage at high temperatures to ensure reliable operation. Refer to the TI datasheet for more information on thermal derating.
  • Troubleshooting issues with the TLV2620IDR involves identifying the symptoms, checking the circuit design and layout, and verifying the component values and tolerances. TI recommends using oscilloscopes and other diagnostic tools to measure the input and output voltages, currents, and waveforms. Refer to the TI application note 'Troubleshooting Switching Regulators' for more information and guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV2620IDR Overview

Use the download button to access the TLV2620IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV26, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
