TLV2623IDGSR - Texas Instruments

Description: 800 uA/ch, 11MHz, RRO, Low Voltage, Dual Channel Op Amp with Shutdown

Download TLV2623IDGSR Model

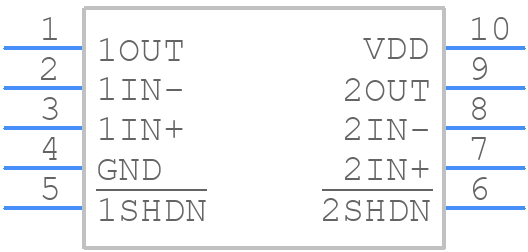

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2623IDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
TLV2623IDGSR - Texas Instruments  - 3D model - Small Outline Packages - DGS0010A
click to zoom

TLV2623IDGSR Details

  • Manufacturer Part Number:

    TLV2623IDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    99 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00005 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    2.3 V/us

  • Slew Rate-Nom:

    6 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    11000

  • Voltage Gain-Min:

    31622

  • Wideband:

    NO

  • Width:

    3 mm

TLV2623IDGSR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TLV2623IDGSR involves keeping the input and output pins away from each other, using a ground plane to reduce noise, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Texas Instruments application note 'PCB Layout Guidelines for Switching Regulators' for more information.
  • Choosing the right inductor for the TLV2623IDGSR involves considering factors such as inductance value, saturation current, and DC resistance. A good starting point is to use an inductor with an inductance value between 1.5uH to 3.3uH, and a saturation current rating above the peak current of the output. Refer to the Texas Instruments application note 'Inductor Selection for Switching Regulators' for more information.
  • The TLV2623IDGSR can handle a maximum input voltage of 15V, but it is recommended to keep the input voltage below 12V to ensure reliable operation and to prevent damage to the device.
  • The output voltage of the TLV2623IDGSR can be adjusted by using a resistive divider network between the output and the feedback pin. The ratio of the resistors determines the output voltage, and the values can be calculated using the formula provided in the datasheet.
  • The minimum input voltage required for the TLV2623IDGSR to operate is 2.7V, but it is recommended to keep the input voltage above 3V to ensure reliable operation and to prevent dropout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV2623IDGSR Overview

Use the download button to access the TLV2623IDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV26, or try a keyword search, such as Operational Amplifiers
