TLV2761CD - Texas Instruments

Description: Single 1.8-V, Micro-power, Rail-to-Rail, Single Supply Amplifier

Download TLV2761CD Model

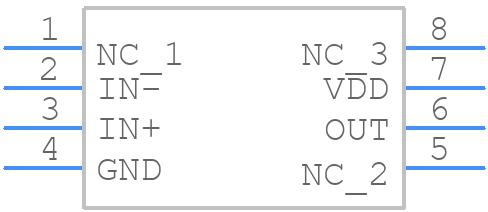

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2761CD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLV2761CD - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

TLV2761CD Details

  • Manufacturer Part Number:

    TLV2761CD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.000015 µA

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    76 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000015 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.07 V/us

  • Slew Rate-Nom:

    0.22 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.028 mA

  • Supply Voltage Limit-Max:

    4 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    500

  • Voltage Gain-Min:

    18000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLV2761CD Frequently Asked Questions (FAQs)

  • To minimize noise and EMI, it is recommended to place the TLV2761CD close to the signal source, use a ground plane, and keep the input and output traces short and away from each other. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be oriented to minimize radiation.
  • The input bias current and input offset voltage of the TLV2761CD can be handled by using a high-impedance input source, such as a voltage divider or a buffer amplifier. Additionally, the input bias current can be cancelled by using a matched resistor network. The input offset voltage can be trimmed using an external trim network or by using a chopper-stabilized amplifier.
  • The TLV2761CD can drive a maximum capacitive load of 100 pF without oscillating. However, the actual capacitive load that can be driven depends on the specific application and the desired stability margin. It is recommended to use a series resistor to dampen the capacitive load and ensure stability.
  • To ensure stability, the TLV2761CD should be used with a gain of 5 or greater, and the input and output impedances should be matched. Additionally, the device should be operated within its recommended operating conditions, and the power supply should be well-regulated and decoupled. The device should also be protected from overvoltage and overcurrent conditions.
  • The main difference between the TLV2761CD and the TLV2771CD is the input common-mode voltage range. The TLV2761CD has a input common-mode voltage range of VCC-1.5V to VCC+0.5V, while the TLV2771CD has a input common-mode voltage range of VCC-2V to VCC+0.5V. The TLV2771CD also has a slightly higher input impedance and a lower input bias current.
