It is recommended to place the TLV2763IDGSR close to the analog signal sources, use a solid ground plane, and keep the analog and digital grounds separate. Additionally, use short and direct traces for the input and output signals, and avoid running digital signals near the analog signals.
Ensure the power supply voltage is within the recommended range of 2.7V to 5.5V, and the operating temperature is within the range of -40°C to 125°C. Also, ensure the device is not exposed to excessive moisture, vibration, or mechanical stress.
Choose capacitors with low equivalent series resistance (ESR) and high frequency response. For the input capacitor, a 1-10uF ceramic capacitor is recommended, while for the output capacitor, a 10-100uF ceramic or tantalum capacitor is suitable. Ensure the capacitors are rated for the operating voltage and temperature range.
Check for proper power supply decoupling, ensure the input and output capacitors are properly selected and placed, and verify the PCB layout is correct. Also, check for any signal integrity issues, such as ringing or reflections, and ensure the device is not overheating.
The TLV2763IDGSR is a low-power, low-voltage op-amp with a high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR). It is suitable for low-power, low-voltage applications. In contrast, the TLV247X series is a higher-speed, higher-power op-amp, while the OPAx series is a higher-precision, higher-power op-amp.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2763IDGSR Overview

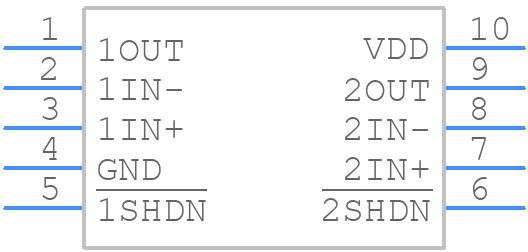

Use the download button to access the TLV2763IDGSR schematic symbol, PCB footprint, and 3D model.
