Texas Instruments recommends a compact layout with short traces, and placing the device close to the analog signal sources. Additionally, it's essential to separate analog and digital grounds, and to use a solid ground plane to reduce noise and electromagnetic interference (EMI).
The TLV2770IDGKR has a rail-to-rail output stage, which means it can swing close to the supply rails. However, if the load requires a specific voltage range, you can use an output voltage divider or an amplifier with a gain stage to adjust the output voltage to the desired range.
The TLV2770IDGKR can drive capacitive loads up to 1nF without any issues. However, for larger capacitive loads, it's essential to add a series resistor to the output to prevent oscillations and ensure stability. The recommended series resistor value can be calculated using the formula: Rs = 100 Ω / (Cload / 1nF).
The TLV2770IDGKR has a common-mode input voltage range that extends beyond the supply rails. However, if the input common-mode voltage exceeds the supply rails, the amplifier may enter a high-impedance state, and the output may become undefined. It's essential to ensure that the input common-mode voltage remains within the specified range to maintain proper operation.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power-supply decoupling. A 0.1μF ceramic capacitor should be placed close to the device, and a 10μF electrolytic capacitor should be placed near the power supply. This scheme helps to filter out high-frequency noise and ensures a stable power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2770IDGKR Overview

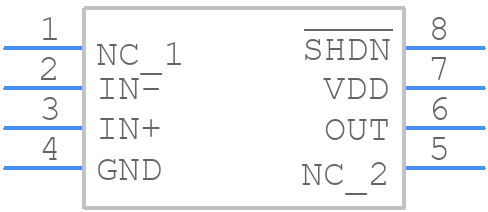

Use the download button to access the TLV2770IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV27,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
