The maximum power dissipation of the TLV2771CD is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the MSOP package, it is 440mW at 25°C. Refer to the thermal characteristics table in the datasheet for more information.
To ensure stability in a unity-gain buffer configuration, make sure to use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10nF to 100nF between the output and the inverting input. This capacitor helps to compensate for the op-amp's internal capacitance and ensures stability.
To minimize noise and EMI, follow good PCB layout practices such as keeping the input and output traces short and separate, using a solid ground plane, and avoiding routing signals near the op-amp's inputs. Additionally, use a low-impedance power supply and decouple the op-amp's power pins with a 10uF capacitor in parallel with a 100nF capacitor.
While the TLV2771CD is an op-amp, it can be used as a comparator in certain applications. However, keep in mind that it does not have a dedicated comparator output stage, so the output may not be as fast or have as much current drive as a dedicated comparator. Additionally, the op-amp's input common-mode range and output swing may not be suitable for all comparator applications.
The input impedance of the TLV2771CD is typically dominated by the input capacitance, which is around 2pF. To calculate the input impedance, use the formula Zin = 1 / (2 * π * f * Cin), where f is the frequency of interest and Cin is the input capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2771CD Overview

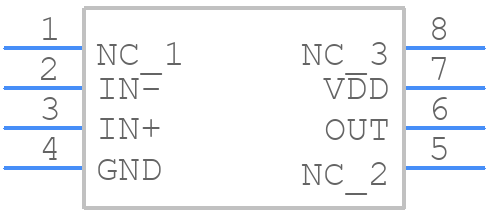

Use the download button to access the TLV2771CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV27,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
