The maximum power dissipation of the TLV2774CD is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the MSOP package, it is 440mW at 25°C. Refer to the thermal characteristics table in the datasheet for more information.
To ensure stability in a unity-gain buffer configuration, make sure to use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10nF to 100nF between the output and the inverting input. This capacitor helps to compensate for the op-amp's internal pole and ensures stability.
To minimize noise and EMI, follow good PCB layout and routing practices. Keep the input and output traces short and away from noise sources. Use a solid ground plane and decouple the power supplies with low-ESR capacitors. Avoid routing high-frequency signals near the op-amp's inputs and outputs. Refer to the application notes and layout guidelines in the datasheet for more information.
While the TLV2774CD is an op-amp, it can be used as a comparator in some applications. However, it is not recommended for high-speed or high-precision comparator applications due to its limited slew rate and bandwidth. If you need a dedicated comparator, consider using a device specifically designed for that purpose, such as the TLV7031 or TLV7041.
The TLV2774CD has a relatively low input bias current of 1pA typical. However, if you're working with high-impedance sources or sensitive circuits, you may need to consider the input bias current. Use a voltage follower or a buffer stage to isolate the source from the op-amp's input, or use a current-limiting resistor to minimize the effect of the input bias current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2774CD Overview

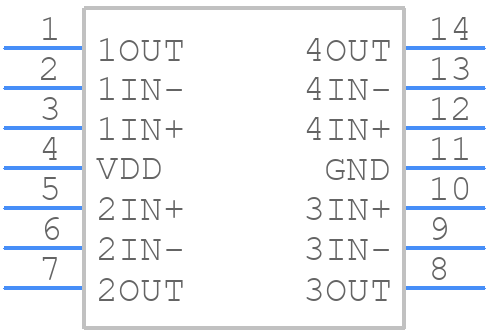

Use the download button to access the TLV2774CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV27,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
