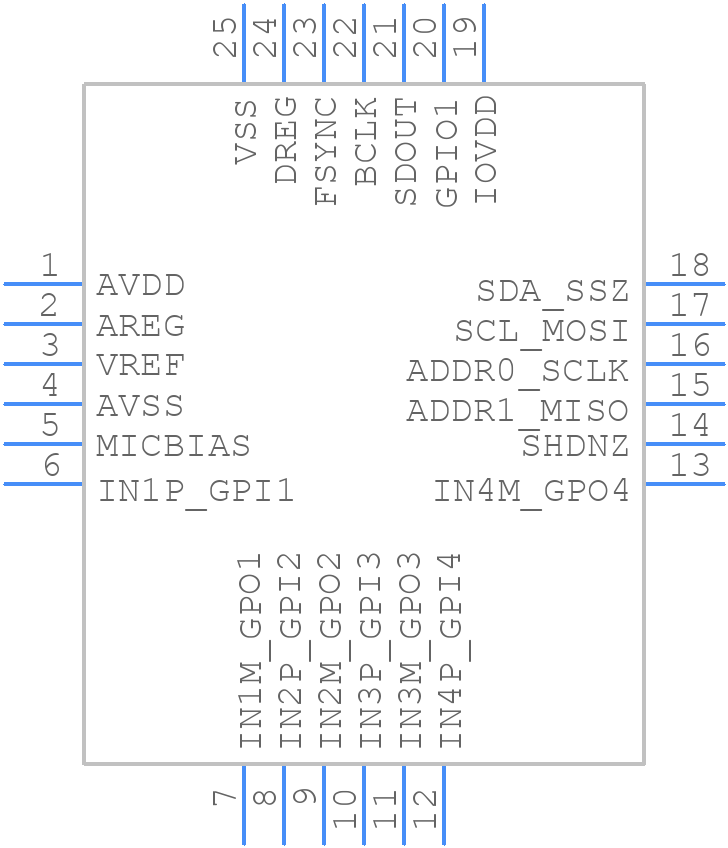

TLV320ADC3140IRTWT - Texas Instruments

TLV320ADC3140IRTWT Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the TLV320ADC3140?
  The recommended power-up sequence is to apply VDDA (analog supply) first, followed by VDD (digital supply) and then the clock signal. This ensures proper initialization of the ADC.
• How do I optimize the performance of the TLV320ADC3140 in terms of noise reduction?
  To optimize performance, use a low-noise power supply, decouple the power pins with capacitors, and use a quiet analog ground plane. Additionally, ensure that the analog input signals are properly filtered and shielded.
• What is the maximum clock frequency that can be used with the TLV320ADC3140?
  The maximum clock frequency is 50 MHz. However, the actual clock frequency used may be limited by the specific application and system requirements.
• How do I configure the TLV320ADC3140 for differential or pseudo-differential input modes?
  The TLV320ADC3140 can be configured for differential or pseudo-differential input modes by setting the appropriate bits in the device's control registers. Refer to the datasheet for specific register settings and configuration details.
• What is the latency of the TLV320ADC3140, and how does it affect my system design?
  The latency of the TLV320ADC3140 is approximately 12 clock cycles. This latency should be considered when designing the system's data acquisition and processing pipeline to ensure proper synchronization and data integrity.
