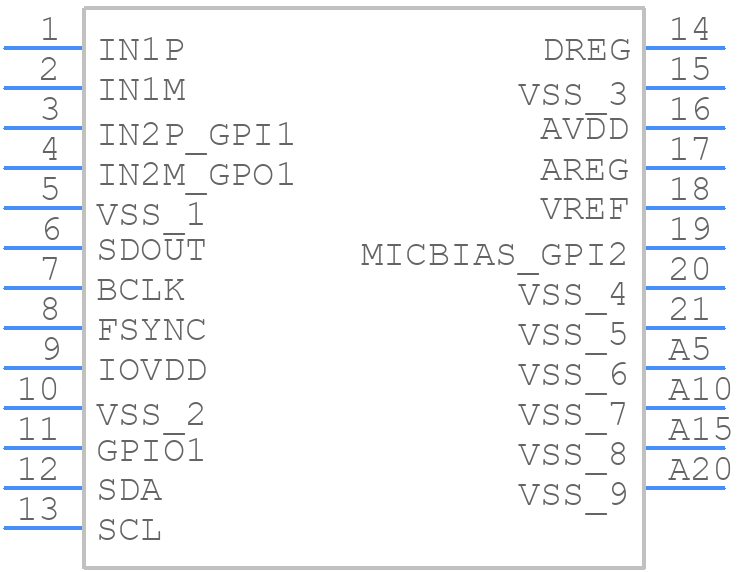

TLV320ADC5120IRTER - Texas Instruments

TLV320ADC5120IRTER Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the TLV320ADC5120?
  The recommended power-up sequence is to apply VDDA (analog power) first, followed by VDD (digital power) and then the clock signal. This ensures proper initialization of the ADC.
• How do I optimize the performance of the TLV320ADC5120 in terms of noise reduction?
  To optimize performance, use a low-noise power supply, decouple the power pins with capacitors, and use a quiet analog ground plane. Additionally, ensure that the analog input signals are properly filtered and shielded.
• What is the maximum sampling rate of the TLV320ADC5120, and how does it affect the power consumption?
  The maximum sampling rate of the TLV320ADC5120 is 1 MSPS. As the sampling rate increases, the power consumption also increases. To minimize power consumption, operate the ADC at the lowest sampling rate required for the application.
• How do I interface the TLV320ADC5120 with a microcontroller or FPGA?
  The TLV320ADC5120 has a parallel interface that can be connected to a microcontroller or FPGA. Ensure that the interface signals are properly synchronized and that the data is clocked out of the ADC on the falling edge of the clock signal.
• What is the purpose of the internal reference voltage (VREF) pin, and how do I use it?
  The internal reference voltage (VREF) pin provides a stable voltage reference for the ADC. Connect VREF to an external capacitor (typically 10 nF) to filter out noise and ensure accurate conversions.
