TLV320AIC10CPFB - Texas Instruments

Description: Low-Power Mono Voice Band CODEC

Download TLV320AIC10CPFB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

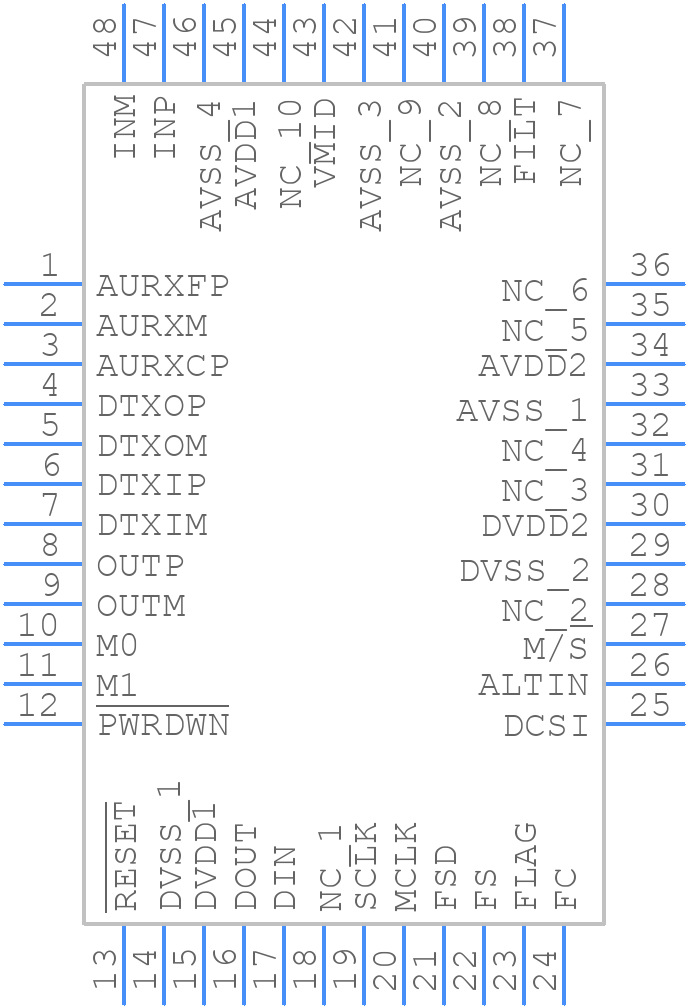

TLV320AIC10CPFB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC10CPFB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48)2021-1
click to zoom
3D Models
TLV320AIC10CPFB - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48)2021-1
click to zoom

TLV320AIC10CPFB Details

  • Manufacturer Part Number:

    TLV320AIC10CPFB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TLV320AIC10CPFB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC10CPFB for stereo audio, set the STEREO pin high and ensure that the I2S format is set to 24-bit or 32-bit. Additionally, configure the DAC and ADC channels to operate in stereo mode.
  • The TLV320AIC10CPFB supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • To reduce power consumption, use the power-down modes (PDWN and PDWN_ADC) to shut down unused blocks. Additionally, adjust the clock frequency and voltage supply to minimize power consumption.
  • To minimize noise and ensure proper operation, follow the recommended layout and routing guidelines in the datasheet, including keeping analog and digital signals separate and using a solid ground plane.
