TLV320AIC10IPFBG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TLV320AIC10IPFBG4 - Audio Codec, General Purpose, General Purpose, 1, 1, -40 °C, 85 °C, 22 kSPS

Download TLV320AIC10IPFBG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

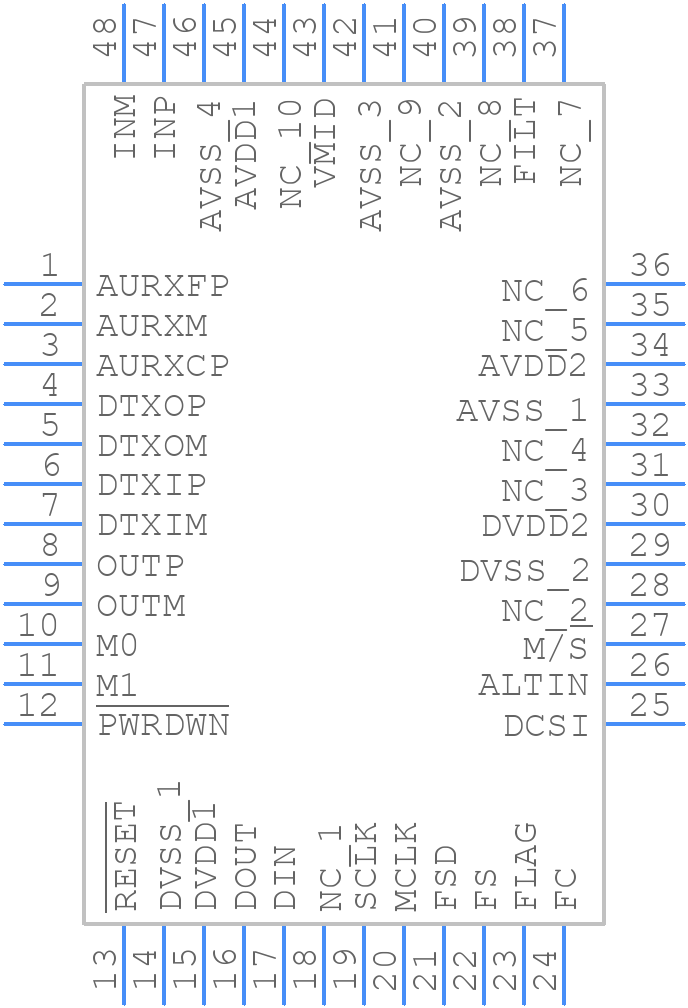

TLV320AIC10IPFBG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC10IPFBG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom
3D Models
TLV320AIC10IPFBG4 - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom

TLV320AIC10IPFBG4 Details

  • Manufacturer Part Number:

    TLV320AIC10IPFBG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TLV320AIC10IPFBG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The TLV320AIC10IPFBG4 can be configured for master or slave mode by setting the M/S bit in the Control Register (address 0x00). A value of 0 sets the device to master mode, while a value of 1 sets it to slave mode.
  • The TLV320AIC10IPFBG4 supports clock frequencies up to 50 MHz.
  • The TLV320AIC10IPFBG4 has a built-in microphone bias voltage generator. To implement it, connect the MIC_BIAS pin to the microphone, and set the BIAS_EN bit in the Control Register (address 0x00) to 1.
  • The NOISE_GATE pin is used to enable or disable the noise gate function, which helps to reduce noise and hiss in the audio signal. When the pin is high, the noise gate is enabled, and when it's low, it's disabled.
