TLV320AIC11IPFB - Texas Instruments

Description: Low-Power Mono Voice Band CODEC

Download TLV320AIC11IPFB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

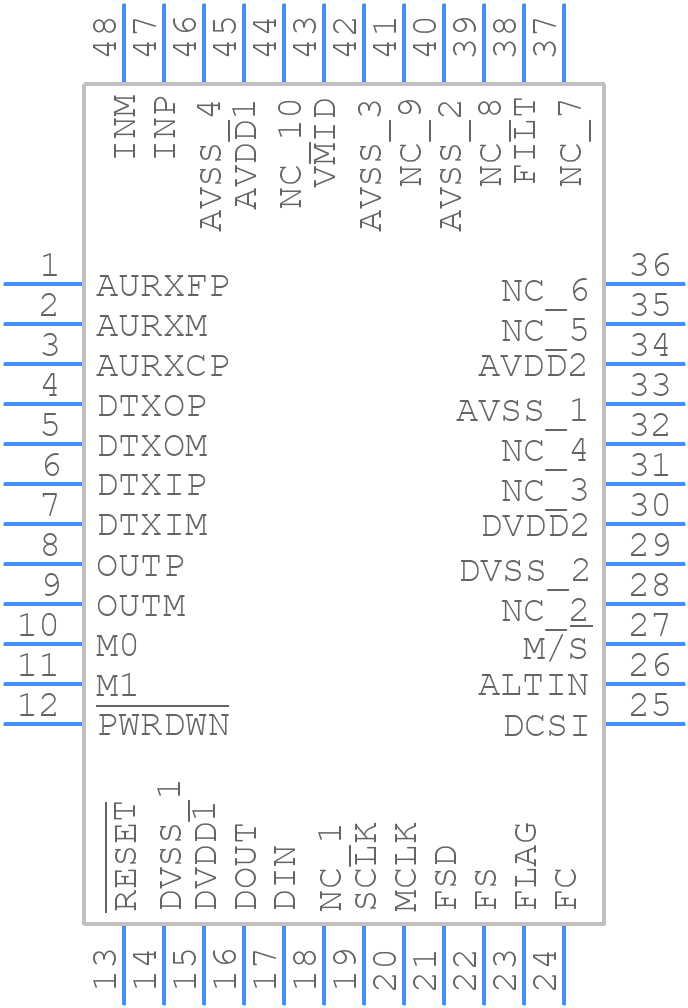

TLV320AIC11IPFB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC11IPFB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48)2021
click to zoom
3D Models
TLV320AIC11IPFB - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48)2021
click to zoom

TLV320AIC11IPFB Details

  • Manufacturer Part Number:

    TLV320AIC11IPFB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES ADDITIONAL 3V TO 5.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TLV320AIC11IPFB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the digital interface signals. This ensures proper device operation and prevents damage.
  • To configure the TLV320AIC11IPFB for stereo audio, connect the left and right audio channels to the corresponding pins (AINL and AINR) and set the STEREO pin high. This enables stereo mode and allows for independent control of the left and right channels.
  • The maximum input signal level that the TLV320AIC11IPFB can handle is 2.2 Vrms. Exceeding this level may result in distortion or damage to the device.
  • To optimize the TLV320AIC11IPFB for low-power operation, use the power-down mode (PD pin low) when not in use, reduce the clock frequency, and adjust the analog and digital supply voltages to the minimum required levels.
  • The recommended layout and routing for the TLV320AIC11IPFB involves separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and impedance mismatches to reduce noise and ensure signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC11IPFB Overview

Use the download button to access the TLV320AIC11IPFB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
