TLV320AIC23BPWR - Texas Instruments

Description: Low-Power Stereo CODEC with HP Amplifier

Download TLV320AIC23BPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

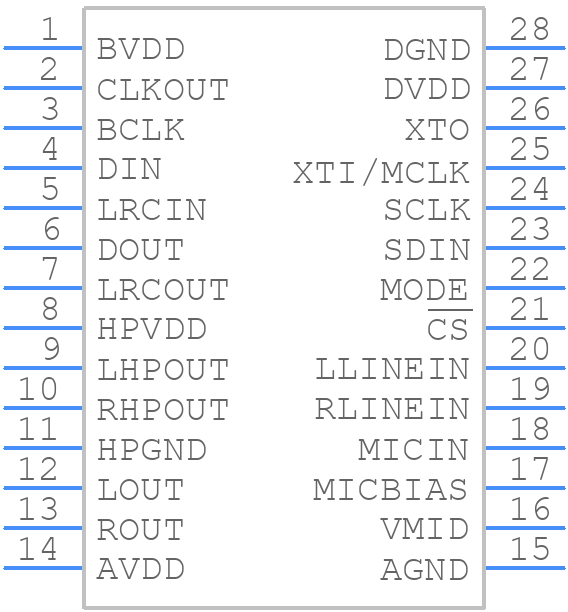

Symbol
TLV320AIC23BPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC23BPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
TLV320AIC23BPWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

TLV320AIC23BPWR Details

  • Manufacturer Part Number:

    TLV320AIC23BPWR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 1.42V TO 3.6V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV320AIC23BPWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC23BPWR for stereo audio, set the STEREO bit in the Audio Interface Control Register (AIC23_REG_04) to '1'. This enables stereo mode and allows for independent left and right channel audio processing.
  • The TLV320AIC23BPWR supports clock frequencies up to 50 MHz. However, the recommended clock frequency is 12.288 MHz for optimal performance.
  • The TLV320AIC23BPWR has a built-in microphone bias voltage generator. To enable it, set the MICBIAS bit in the Power Management Register (AIC23_REG_03) to '1'. The microphone bias voltage can be adjusted using the MICBIAS_LEVEL bits in the same register.
  • The NOISE_GATE bit in the Audio Interface Control Register (AIC23_REG_04) enables a noise gate function that helps reduce noise and hiss in the audio signal. When set to '1', the noise gate is enabled, and the device will automatically mute the audio signal when the input level falls below a certain threshold.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC23BPWR Overview

Use the download button to access the TLV320AIC23BPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
