TLV320AIC23BRHDG4 - Texas Instruments

Description: Audio Codec 2ADC / 2DAC 32bit 28-Pin VQFN EP Tube

Download TLV320AIC23BRHDG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

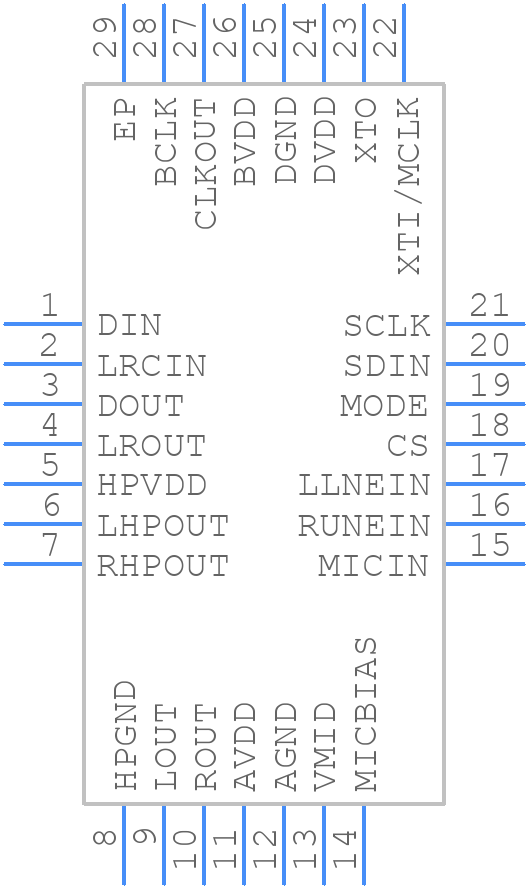

TLV320AIC23BRHDG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC23BRHDG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028B
click to zoom
3D Models
TLV320AIC23BRHDG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028B
click to zoom

TLV320AIC23BRHDG4 Details

  • Manufacturer Part Number:

    TLV320AIC23BRHDG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 1.42V TO 3.6V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC23BRHDG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC23BRHDG4 for stereo audio, set the STEREO pin high and configure the I2S interface for stereo mode using the I2C interface. Refer to the datasheet for specific register settings.
  • The maximum input signal level for the TLV320AIC23BRHDG4 is 2.2 Vrms. Exceeding this level may result in distortion or damage to the device.
  • To reduce power consumption, use the power-down modes (PDWN or PDWN_ALL) when the device is not in use. Additionally, adjust the clock frequency and voltage supply to the minimum required for your application.
  • The recommended layout and routing for the TLV320AIC23BRHDG4 involves keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and impedance mismatches. Refer to the datasheet and application notes for specific guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC23BRHDG4 Overview

Use the download button to access the TLV320AIC23BRHDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs
